Product Information

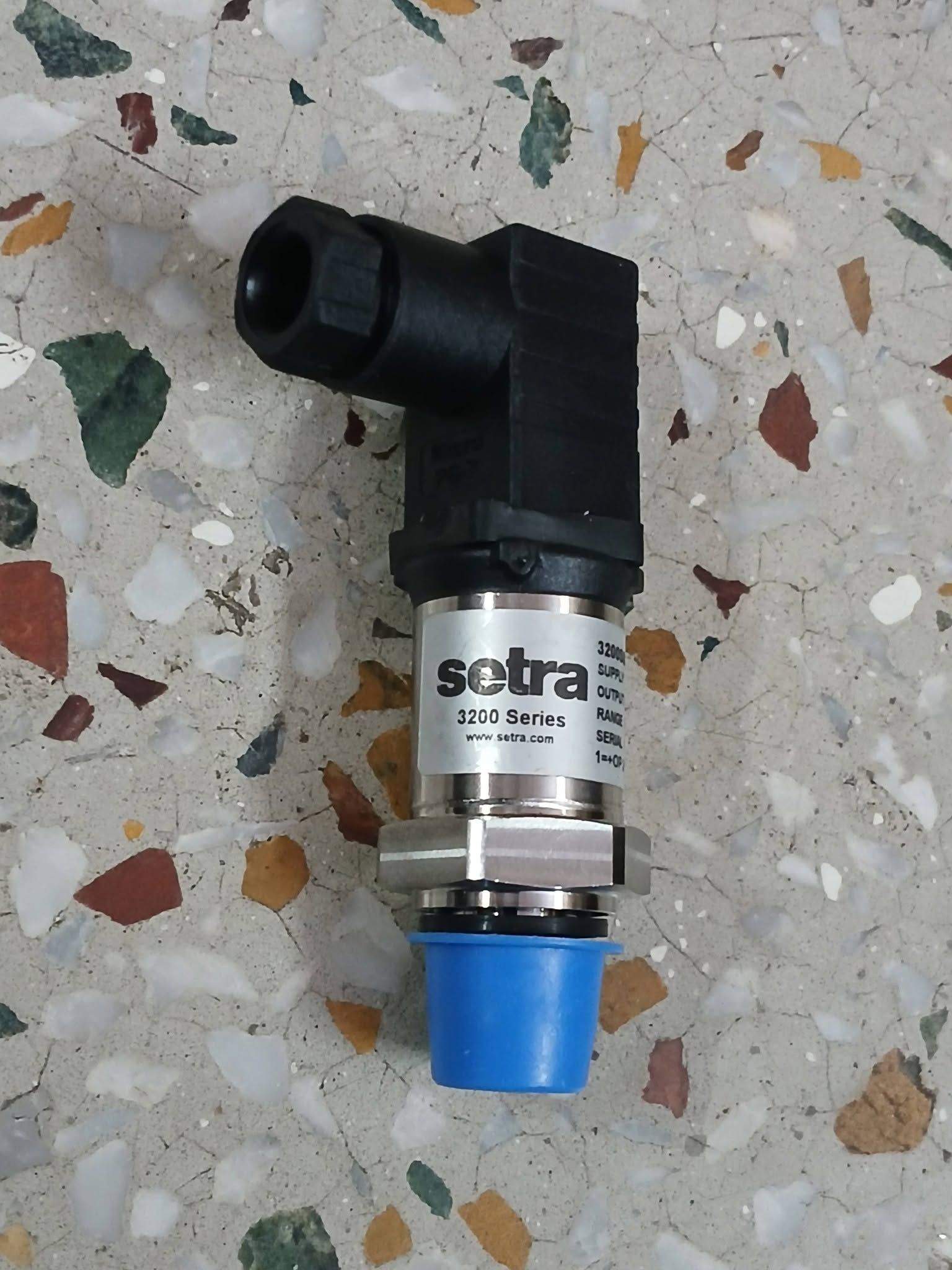

SETRA Model 3200S0200S05BR3 is a Heavy-Duty Industrial Pressure transmitter Designed For Reliable Measurement of Pressure in Demanding OEM and industrial applications.The Model 3200 uses sputtered Thin-film sensing technology,An all-welded stainless-steel construction and a compact design for long-term stability and durability.The specified pressure range is 0 to 200 Bar.Setra Model 3200 is available with different electrical outputs, pressure connections and electrical connections depending on the selected configuration
Technical Data
- Brand:SETRA
- Model:3200
- Part No:3200S0200S05BR3
- Pressure Range:0 to 200 Bar
- Supply:12-32 VDC
- OUTPUT: 0…10 V
- CONNECTION:1/4″ NPT 304 SS
- Accuracy:Up to ±0.25% FS
- Construction:All-Welded SS
- Ingress Protection:IP67
- Design:Heavy-Duty Industrial
Product Features
- High Reliability And Long-Term Stability
- Compact Heavy-Duty Construction
- Sputtered thin-film sensing element
- All-welded Stainless-Steel Construction
- Excellent resistance to demanding industrial environments
- Reverse wiring protection
- Multiple output and connection options
- IP67 environmental protection
- RoHS compliant
- Designed for high-pressure industrial applications
Field Of Application
- Hydraulic systems
- Power generation equipment
- Booster pump systems
- Irrigation systems
- Industrial machinery
- OEM Equipment
- High-pressure process systems
- Heavy-duty industrial equipment
- Off-highway vehicles
- Water and Fluid Handling Systems
Ambient Condition
The Model 3100/3200 Operating and Compensated Temperature Range is approximately-40°C to+125°C.The Transmitter should be installed within the specified environmental and pressure limits for the selected configuration
Material
- Stainless-steel welded construction
- Stainless-steel pressure/wetted components according to configuration
- Robust housing suitable for industrial environments
Electrical Data
The Model 3200 Family Supports Different Electrical Configurations,Including current,Voltage and ratiometric outputs.Excitation and connector details depend on the complete part-number configuration.Verify the exact 3200S0200S05BR3 Configuration Before Electrical installation
Installation Guide
- Confirm The Pressure Range and process connection before installation
- Install the Transmitter securely using the correct pressure fitting
- Do not exceed the rated pressure range
- Connect the electrical wiring according to the approved Setra wiring diagram
- Use suitable cable shielding and grounding where required
- Protect the transmitter from excessive vibration,Mechanical Impact and unsuitable media
- Check for leakage and verify the pressure reading after installation
Approval
The Model 3200 Product Family is specified with CE and UL approvals and RoHS compliance,With IP67-rated protection.Exact approvals can vary by configuration and should be confirmed for the specific part number
Accessories
- Mating Electrical Connectors
- Process Connection Adapters
- Compatible Cables
- Restricting Orifice/Restriction Accessories where Applicable
- Mounting accessories
- Pressure Connection Fittings
Additional Information:
- Item Code: SETRA Pressure Transmitter Part No 3200S0200S05BR3 Range 0 TO 200 Bar
