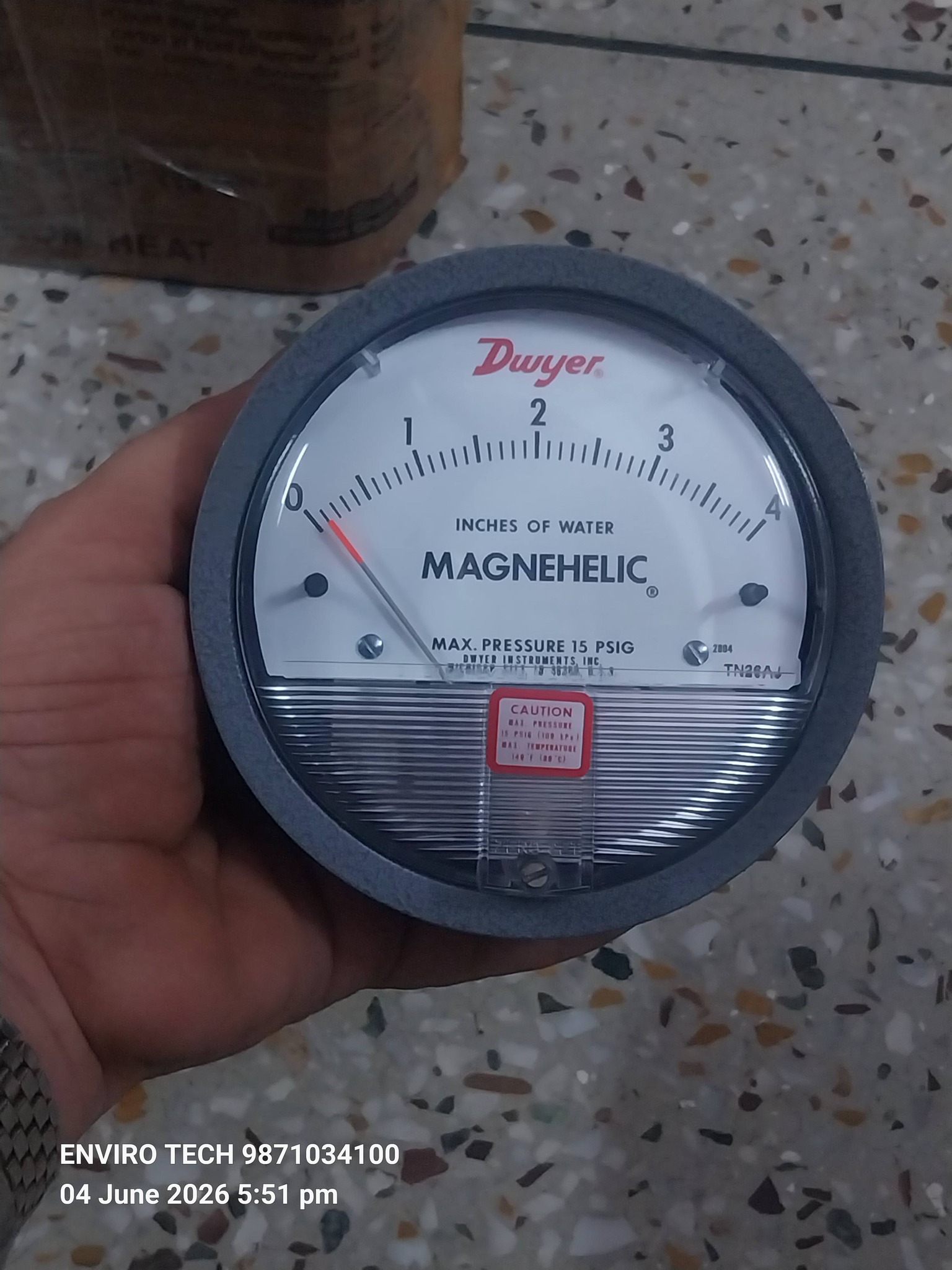

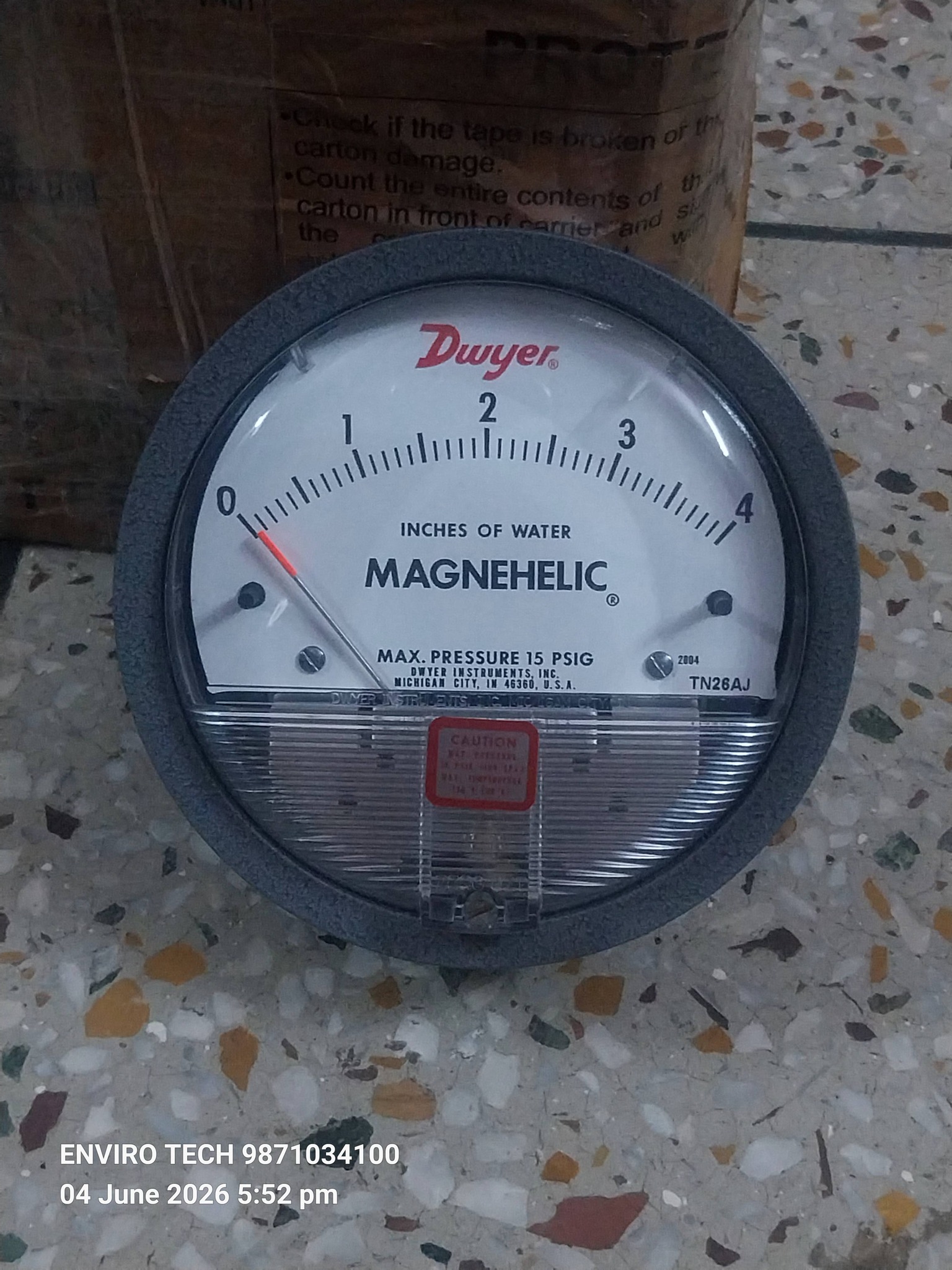

DWYER Magnehelic Differential Pressure Gauge Range 0-4 Inch
DWYER Magnehelic Differential Pressure Gauge, Range 0–4 Inch W.C., is a Mechanical Differential Pressure Gauge Designed For Accurate Measurement Of Air And Compatible Non-Combustible Gas Pressure. It Is Widely Used For Monitoring Air Filters, AHU/ HVAC Systems, Fans, Blowers, Ducts, Clean Rooms And Room/Building Pressure.
Specification / Additional Details
- Brand: DWYER
- Series: Magnehelic Series 2000
- Type: Differential Pressure Gauge
- Range: 0–4 Inch W.C.
- Equivalent Range: 0–1 kPa
- Dial Size: 4 Inch
- Process Connection: 1/8″ Female NPT
- Measurement: Differential Pressure
- Accuracy: ±2% of Full Scale at 70°F, Depending On Model/Range
- Media: Air And Compatible Non-Combustible Gases
- Operating Temperature: Approx. -6.7°C to 60°C
- Enclosure: IP67
- Mounting: Vertical Diaphragm
- Application: Filter Monitoring, AHU/HVAC, Fan Pressure, Blower Vacuum, Duct Pressure, Room Pressure And Clean-Room Pressure Monitoring.
Application
AHU Filter Monitoring, HVAC Systems, Air Handling Units, Pre Filter & Fine Filter Monitoring, Clean Rooms, Industrial Ventilation Systems, Air Ducts, Fans, Blowers, Exhaust Systems, Furnace Systems and Building Pressure Monitoring.
| Model | Range (In. W.C.) |
|---|---|
| 2000-00N | 0.05–0–0.20 |
| 2000-00 | 0–0.25 |
| 2000-0 | 0–0.50 |
| 2001 | 0–1 |
| 2002 | 0–2 |
| 2003 | 0–3 |
| 2004 | 0–4 |
| 2005 | 0–5 |
| 2006 | 0–6 |
| 2008 | 0–8 |
| 2010 | 0–10 |
| 2012 | 0–12 |
| 2015 | 0–15 |
| 2020 | 0–20 |
| 2025 | 0–25 |
| 2030 | 0–30 |
| 2040 | 0–40 |
| 2045 | 0–45 |
| 2050 | 0–50 |
| 2060 | 0–60 |
| 2080 | 0–80 |
| 2100 | 0–100 |
| 2120 | 0–120 |
| 2150 | 0–150 |
| 2160 | 0–160 |
| 2180 | 0–180 |
| 2200 | 0–200 |
| 2250 | 0–250 |
| 2300 | 0–300 |
| 2400 | 0–400 |
| 2500 | 0–500 |
