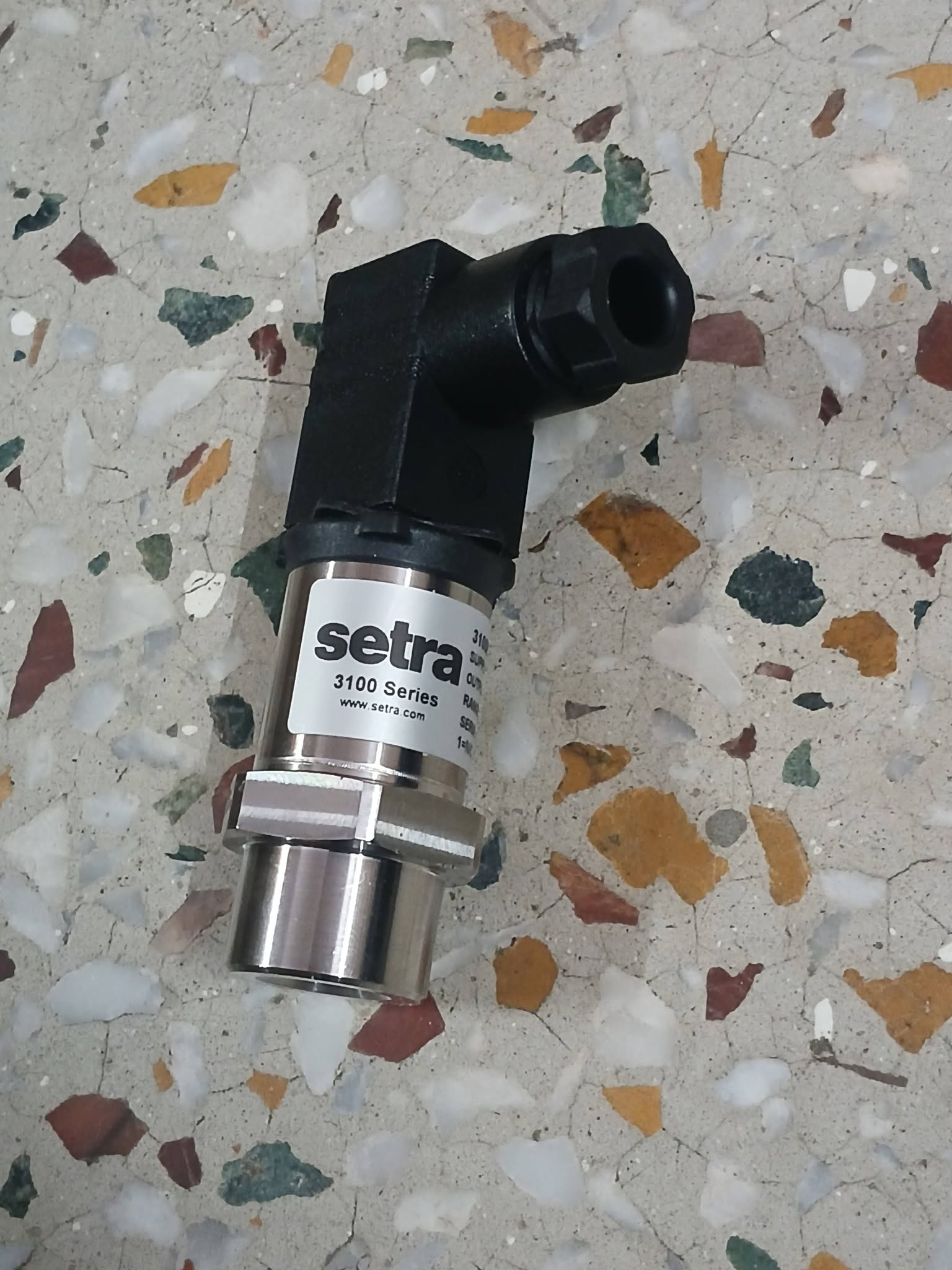

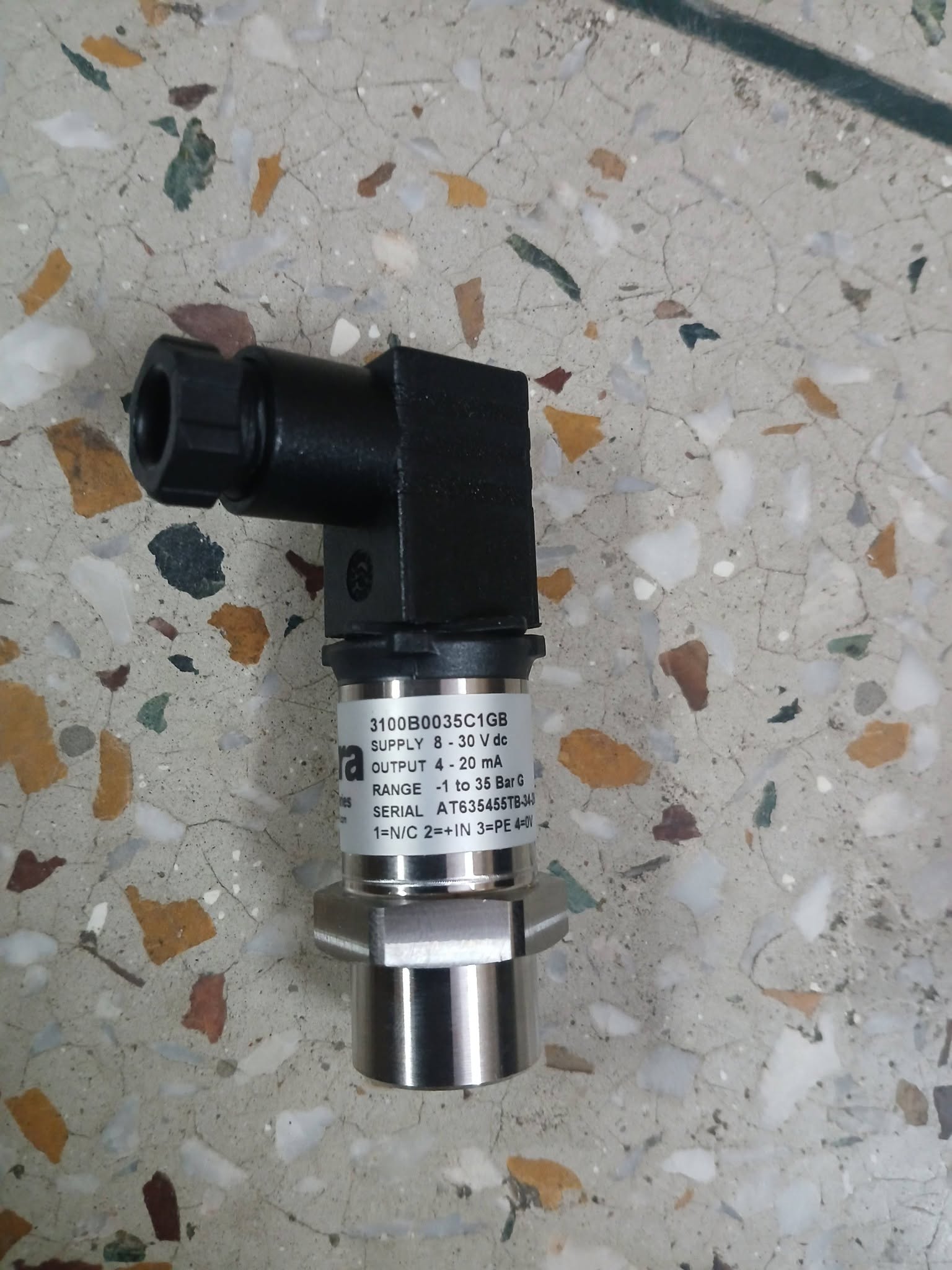

3100B0035G02E Setra Pressure Transmitter 0-35 Bar
Product Information
- Brand: Setra
- Model: 3100B0035G02E
- Product Type: OEM Industrial Pressure Transmitter / Transducer
- Range: 0–35 Bar
- Pressure Type: Gauge
- Output: 4–20 mA
- Supply Voltage: 8–30 VDC
- Pressure Connection: 1/4″-18 NPT Male
- Electrical Connection: M12, 4-Pin
- IP Rating: IP67
- Accuracy: ±0.25% Full Scale (FS)
Technical Data
- Measurement Range: 0–35 Bar
- Accuracy: ±0.25% FS
- Long-Term Stability: <0.1% FS/year
- Frequency Response: <1 ms for conditioned outputs
- Pressure Type: Gauge
- Pressure Port: 1/4″-18 NPT
- Wetted Parts: 17-4PH stainless-steel diaphragm and 304 stainless-steel fittings
- Enclosure Protection: IP67
Product Features
- High accuracy pressure measurement
- Sputtered thin-film sensing technology
- Compact OEM design
- All-welded stainless-steel construction
- 4–20 mA analog output
- Reverse-wiring protection
- IP67 environmental protection
- Designed for industrial OEM applications
Field Of Application
- Industrial process monitoring
- Hydraulic systems
- HVAC and compressors
- Variable-speed pumps
- Refrigeration systems
- Industrial machinery
- OEM equipment
- Booster pump systems
- Irrigation systems
Ambient Condition
- Operating Temperature: -40°C to +125°C
- Compensated Temperature Range: -40°C to +125°C
- Enclosure Rating: IP67
- Suitable for industrial vibration and demanding environments
Material
- Pressure Sensor/Diaphragm: 17-4PH Stainless Steel
- Fittings: 304 Stainless Steel
- Construction: All-welded stainless steel
Electrical Data
- Output: 4–20 mA
- Supply: 8–30 VDC
- Electrical Connection: M12 × 1, 4-Pin
- Current Output: 2-wire transmitter configuration
- Maximum Current Draw: approximately 20 mA
- EMC: Designed to meet applicable industrial EMC requirements
Installation Guide
- Install the transmitter into the 1/4″-18 NPT pressure connection.
- Ensure the process connection is clean and properly sealed.
- Connect the M12 4-pin connector according to the manufacturer’s wiring diagram.
- Provide an 8–30 VDC supply.
- Connect the 4–20 mA signal to the appropriate control/measurement system.
- Check the installation for leakage.
- Do not exceed the specified pressure range during operation.
Approval
- CE
- RoHS Compliant
- cURus / UL-related approvals are specified for the Model 3100 family.
Accessories
- M12 4-Pin mating connector
- M12 connecting cable
- 1/4″-18 NPT sealing accessories
- Pressure fittings/adapters
- Industrial control/PLC interface accessories
- Mounting and sealing accessories
Additional Information:
- Item Code: 3100B0035G02E Setra Pressure Transmitter 0-35 Bar
