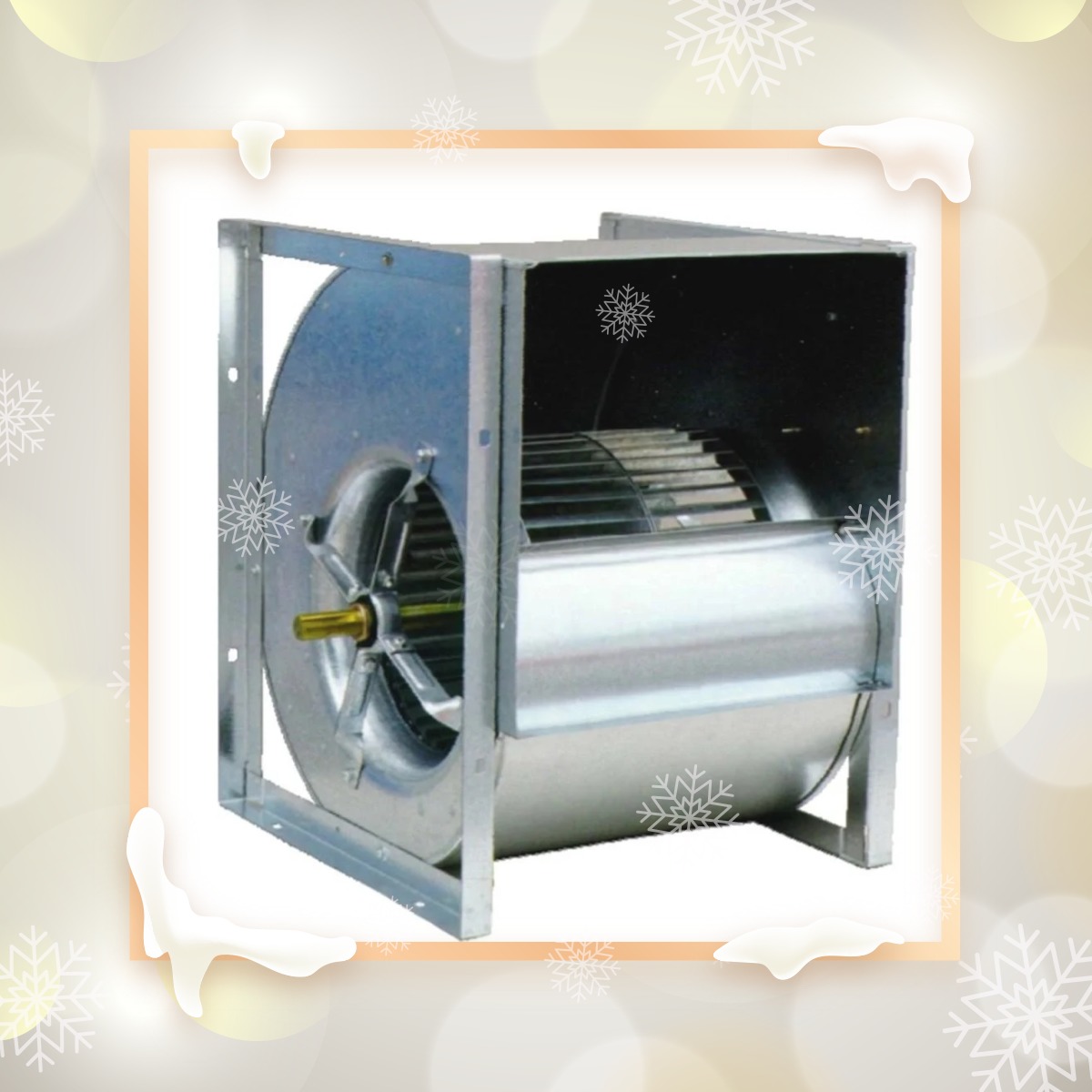

Nicotra Forward Curved Centrifugal Fan ADH 180 R
Product/Service Description
Nicotra Forward Curved Centrifugal Fan ADH 180 R Is a Compact, Double-Inlet Centrifugal Fan Designed For Efficient Air Movement in HVAC And Air-Handling Applications. The Forward-Curved Impeller Design Provides Reliable Airflow Performance, Making It Suitable For Ventilation, Air-Conditioning And Air-Handling Systems. The ADH Series Is Listed As a Forward-Curved DWDI Centrifugal Fan Family.
Key Features – Nicotra
- Forward-Curved Centrifugal Impeller Design
- Double-Inlet Configuration (DWDI)
- Compact 180 MM Impeller Diameter
- 40-Blade Impeller Configuration
- Suitable For HVAC And Air-Handling Applications
- Robust Construction For Reliable Operation
- Performance Data Based On Specified Installation Conditions
- Multiple Drive And Configuration Options Depending On System Requirements
Applications – Nicotra
- Air Handling Units (AHU)
- HVAC Ventilation Systems
- Air-Conditioning Systems
- Industrial Ventilation
- Fresh-Air And Exhaust-Air Systems
- Air Circulation And Air-Treatment Equipment
- Commercial And Industrial Air-Handling Installations
Product Specifications – Nicotra ADH 180 R
| Specification | Details |
|---|---|
| Brand | Nicotra / Nicotra Gebhardt |
| Model | ADH 180 R |
| Fan Type | Forward Curved Centrifugal Fan |
| Configuration | Double Inlet, Double Width (DWDI) |
| Impeller Diameter | 180 MM |
| Number of Blades | 40 |
| Impeller Moment of Inertia | 0.010 kg·m² |
| Impeller Weight | Approx. 1.5 kg |
| Performance Density | Based On Air Density 1.2 kg/m³ |
| Balance Quality | DIN 24166, Class 2 |
| Airflow | Depends On Selected Operating Point |
| Static/Total Pressure | Depends On Selected Operating Point |
| Fan Speed | Depends On Drive And Operating Configuration |
| Motor Power | Depends On Selected Configuration |
| Installation | Free Inlet, Ducted Outlet – As Specified For Certified Performance Data |
Note: Air Flow (CFM/m³/h), Pressure (Pa/MM WG), RPM And Motor kW Should Be Taken From The Exact ADH 180 R Performance Curve And Selected Configuration, Rather Than Using One Fixed Value.
